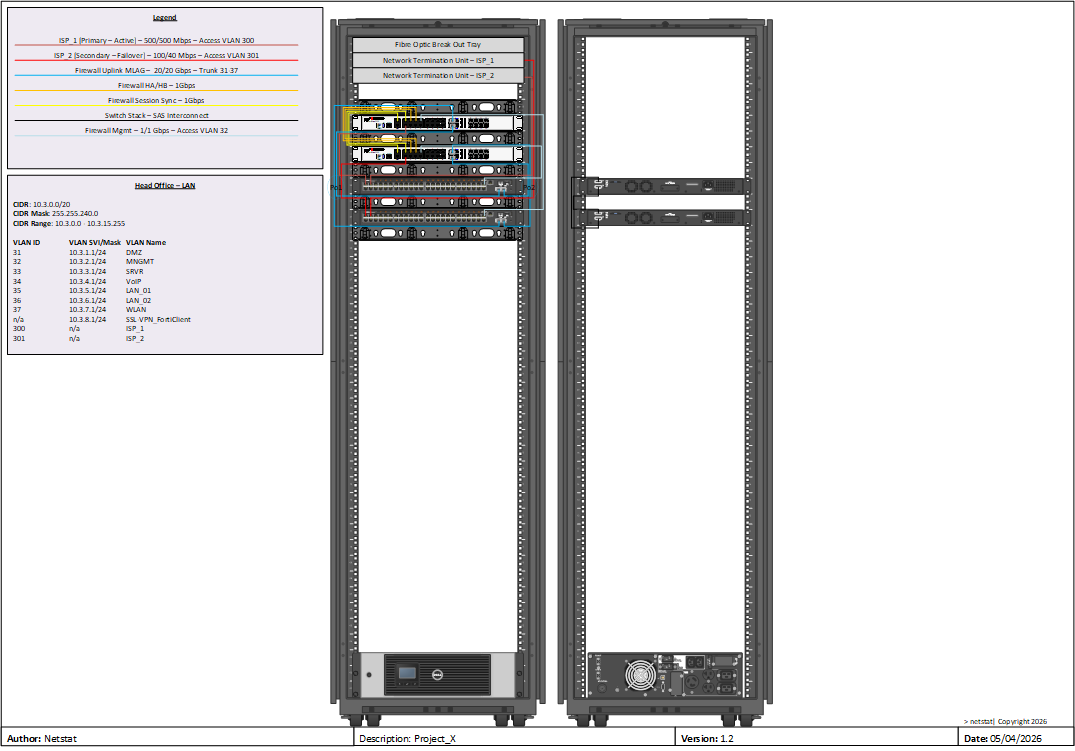

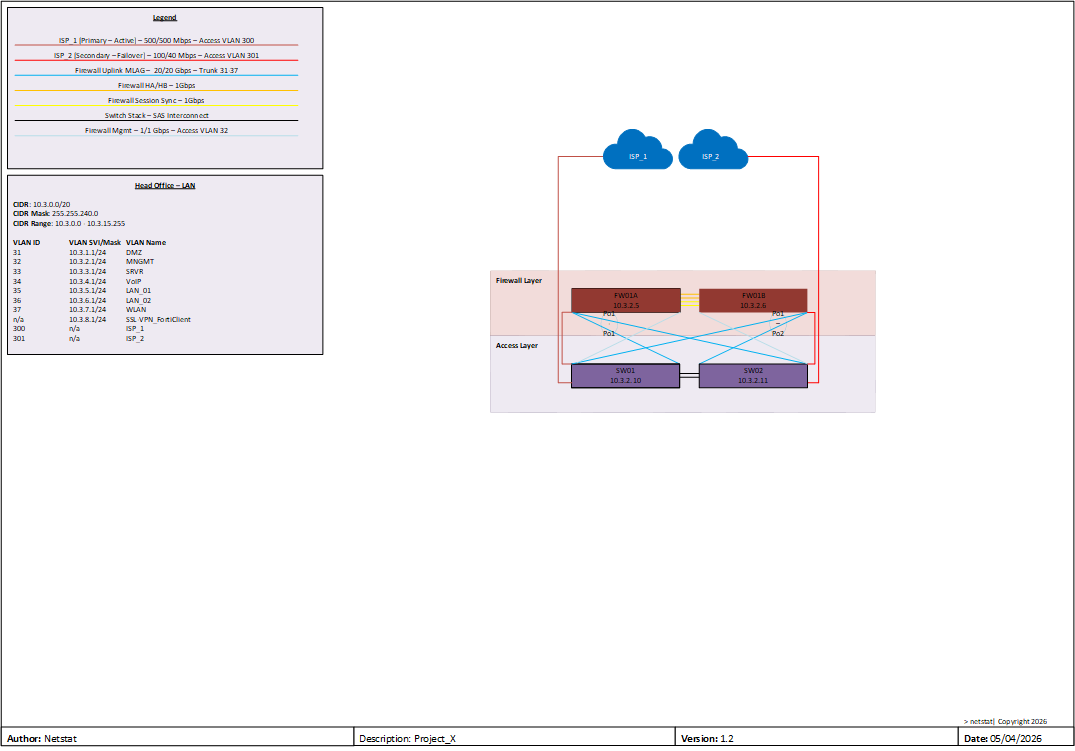

Redundant Head Office Network Build

Login | Register

PRIMARY INTERNET LINK (EXETEL) - 1x Exetel Enterprise Ethernet NBN 500/500 Mbps (Primary Link) - 1x Exetel /30 Block of 4 IP Addresses (2 usable) SECONDARY INTERNET LINK (AUSSIE BROADBAND - HOT STANDBY) - 1x Aussie Broadband NBN Business TC-4 100/40 Mbps (Hot Standby Failover) * Delivered via separate NBN access path * Routed to FortiGate as secondary WAN * Automatic failover via SD-WAN / link-monitoring FIREWALLS - 2x FortiGate 200F (each with 2x 10Gb SFP+ ports) - 2x FortiGate 200F UTP 3-Year Subscription - 4x Fortinet 10Gb SFP+ SR Transceiver Modules (for firewall side of uplinks) DELL ACCESS SWITCHING (STACKED PAIR) - 2x Dell N2048P PoE Switch - 2x Dell Networking Stacking Cable 0.5m (SKU 470-ABMI) - 4x Dell SFP+ 10GbE SR Transceiver Modules (MMF) (for switch side of uplinks) * Mini-SAS stacking cables for N-Series supporting full 84Gbps stack fabric * Used for LAN, management, and general access switching * Uplink to firewall via SFP+ Cross-Chassis EtherChannel FIBRE INTERCONNECT PATCHING (UPDATED FOR DEPLOYMENT SPARES) - 6x Dell OM4 LC-LC Fibre Cable 1m (MMF) (4 active paths + 2 project spares) COPPER / MANAGEMENT PATCHING (Cat6A LSZH - UPDATED FOR BUFFER) - 4 Cat6A RJ45 Snagless Patch Cable - 1m (Covers Firewall HA links) (Yellow) - 4 Cat6A RJ45 Snagless Patch Cable - 1m (Covers ISP NTU handoffs links) (Red) - 10x Cat6A RJ45 Snagless Patch Cable - 1m (Covers Out-of-Band switch management and local server ports) - 5x Horizontal Cable Managers - (1RU, 4 D-rings & Brush Strip) OPTIONAL - 1x Dell Smart UPS (Optional – size to be determined / sized accordingly) - 2x PDU (Power Distribution Units) for structured rack power management PROFESSIONAL SERVICES - 1x Professional Services Fee - Physical Installation, Switch Stacking Fabric Setup, FortiGate HA Clustering with SD-WAN Failover, and VLAN Configuration (VLAN 31-37)
