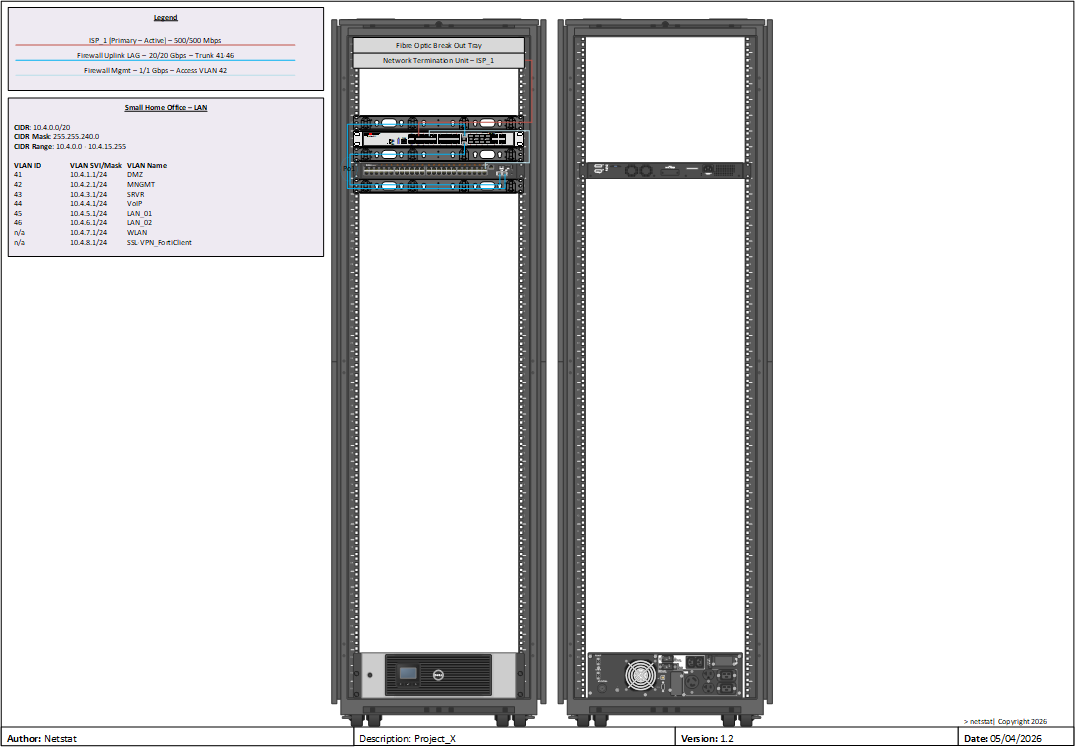

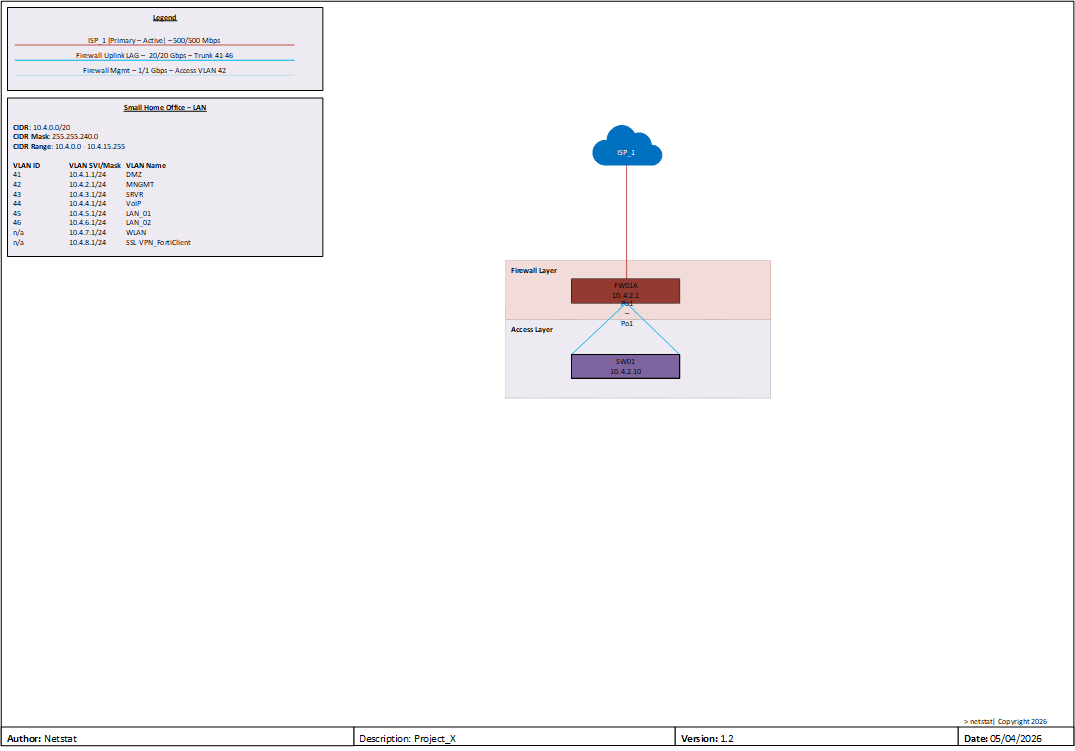

PRIMARY INTERNET LINK (EXETEL) - 1x Exetel Enterprise Ethernet NBN 500/500 Mbps (Primary Link) FIREWALL - 1x FortiGate 100F (2x 10Gb SFP+ ports) - 1x FortiGate 100F UTP 3-Year Subscription (FortiCare + FortiGuard) - 2x Fortinet 10Gb SFP+ SR Transceiver Modules (For Firewall side of uplink) DELL ACCESS SWITCHING - 1x Dell N2048P PoE Switch (Includes 2x native 10GbE SFP+ ports) - 2x Dell SFP+ 10GbE SR Transceiver Modules (MMF) (For Switch side of uplink) * Used for LAN, management, and general access switching * Uplink to firewall utilizes both native SFP+ ports for the 20Gbps LAG (Po1) FIBRE INTERCONNECT PATCHING - 2x Dell OM4 LC-LC Fibre Cable 1m (MMF) COPPER / MANAGEMENT PATCHING (Cat6A LSZH - UPDATED FOR BUFFER) - 4x Cat6A RJ45 Snagless Patch Cable - 1m (Covers ISP NTU handoff and dedicated Firewall Mgmt VLAN 42 link) (Red) - 4x Cat6A RJ45 Snagless Patch Cable - 2m (Covers Out-of-Band switch management and local desktop/device lines) (Yellow) - 3x Horizontal Cable Managers - (1RU, 4 D-rings & Brush Strip) OPTIONAL - 1x Dell Smart UPS (Optional – size to be determined / sized accordingly) - 1x PDU (Power Distribution Units) for structured rack power management PROFESSIONAL SERVICES - 1x Professional Services Fee - Physical Installation, Firewall-to-Switch LAG Configuration, and VLAN Setup (VLAN 41-46)
